TOMY D4 user manual.

The first thing you have to decide is if you are going to use Tom Connector software or Simhub software to control the dashboard.

One of these two programs is necessary to send the necessary information from the game to the dashboard.

Tom Connector is a very simple software to use, you just have to start the program and it will detect the device and the game you are playing, it is a software developed by us and uses our philosophy Easy Use. Simhub is a more complicated program to configure although it offers more options, Simhub is not developed by us and is a third-party software and therefore we cannot make changes to this software.


Using Tom Connector

If you have decided to use Tom Connector these are the simple steps to follow to use the software.

1. Download the program from the following link.

DONWLOAD TOM CONNECTOR

2. Unzip it anywhere you want and run the file "Tom Connector.exe"

3. Configure the game you want to play with the following guide, this guide only works for Tom Connector.

GAME CONFIGURATION FOR TOM CONNECTOR

4. Start the game and enjoy !!


Using Simhub

Everything said above is not valid for Simhub, Simhub has its own way to configure each game to work with this software.

To use this software, the first thing to do is configure it so that the dashboard works with Simhub.
You can do this by following the guide on this link.

SIMHUB GUIDE


Using the dashboard

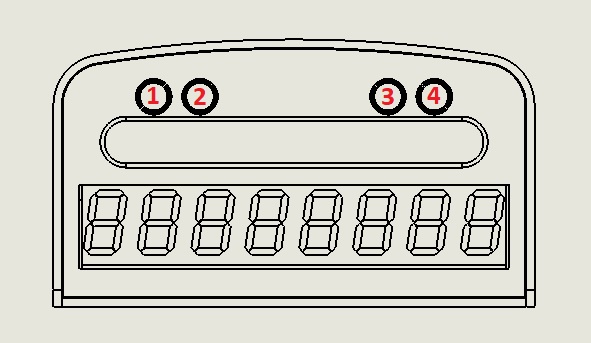

By pressing button 3 you can change the panel mode to work with Tom Connector or Simhub.
Tom connector mode
  1. Previus function.
  2. Next function.
  3. Change Tom connector/Simhub mode.
  4. On/off.

Funtions in Tom Connector mode:

  • Gear - Position - Speed
  • Speed - Fuel
  • Position - Fuel
  • Fuel consumition - Fuel
  • RPM cut. This function is to set the gear change warning, if it is set to 200, it means that 200 rpms before the maximum rpms of the car will indicate the gear change, if the maximum rpms of the engine is 16500 rpms, it will notify you 200 rpms before that value, that is, at 16300 rpms. Available as of firmware 2.01
Simhub mode
  1. Previous screen.
  2. Next screen.
  3. Change Tom Connector/Simhub mode.
  4. Change brightness.
