TOMY F1 user manual.
Sumary
  • Double clutch operation and exit procedure.
  • General use of the steering wheel.
  • Tom Connector and Simhub mode.
  • Update the steering wheel firmware.

Double clutch operation and exit procedure.
Press the switch to the right to activate the double clutch.
  1. Fully press the master clutch.
  2. Turn the calibration potentiometer to the right until the car moves without skidding.

Now you can perform the exit procedure.

  1. Press the two clutch paddles as far as possible, when the output releases the slave clutch and the car will start the movement without skidding.
  2. Release the master clutch bit by bit to release all the remaining clutch.

General use of the steering wheel.

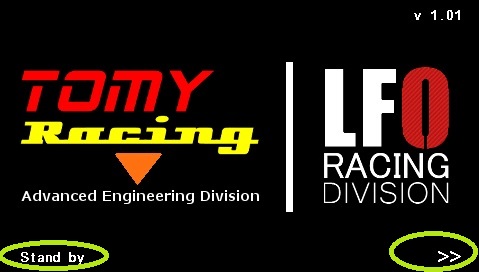

The steering wheel screen is resistive touch, so it can be used with gloves. In the initial screen pressing on "Stand by" you can turn off the screen, if you press again on the screen, when it is off, it will light up again. If you press the symbols "<<" and ">>" you can move forward or backward in the different layouts of the screen.
The steering wheel has the ability to assign all buttons up to 3 times, this is done with the left rotary, if it is placed in position 1 the 10 side buttons can be assigned, if it is put in position 2, it can be reassigned those same buttons to other functions and in the 3 position the same.
Some games do not support more than 32 assignments for buttons, like Raceroom, in this case the buttons can not be assigned in position 2 and 3 and neither will work the two lever switches in the center, the rest will work normally.

Tom Connector and Simhub mode.
To activate the mode for the Tom Connector software, press the switch up, and to activate the mode for the Simhub software, press the switch down.

Update the steering wheel firmware.
To update the firmware with the steering wheel firmware update software, set the switch to Tom Connector mode.
