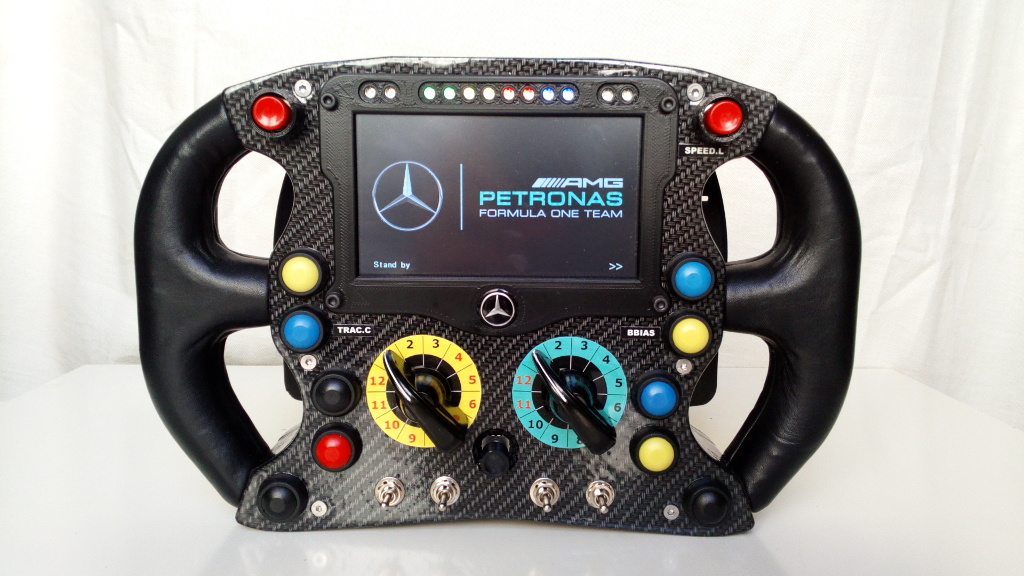

Features

• It works exclusively on PC with the S.O Windows.


• 8 RGB LEDs for revolutions, 4 RGB LEDs for indicators.


• 4.3" resistive touch screen.


• 12 push-buttons, 10 of them multiplexed, 1 minijostick with central pulse, 4 momentary switches (on-off-on) and 2 switched rotarys, one with 3 effective positions and the other with 10 effective positions. In total 55 assignments can be made.

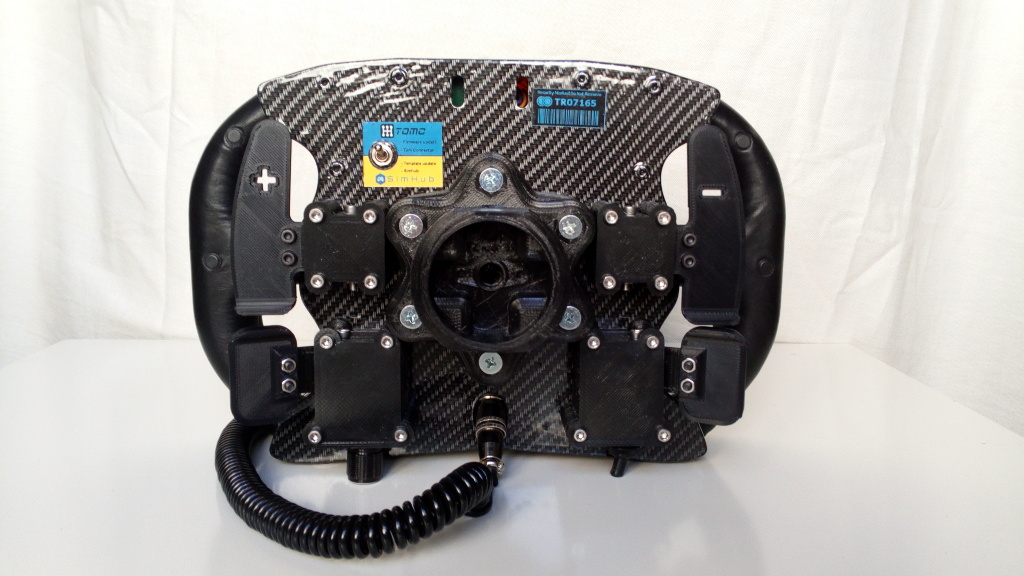

• Paddles for shifting low-noise magnetic gears, only the microswitch is heard.


• Double clutch or accelerator and brake in the lower paddles, selectable by means of a switch. Progressive activation through hall sensors and magnets. Clutch calibration for output control by potentiometer.


• Rear switch to select between the Tom Connector or Simhub softwares.


• Compatible with Thrustmaster and Logitech bases. See the documentation tab for Logitech mounting guides.


• A single USB cable. Necessary USB 3.0 for the current consumption.

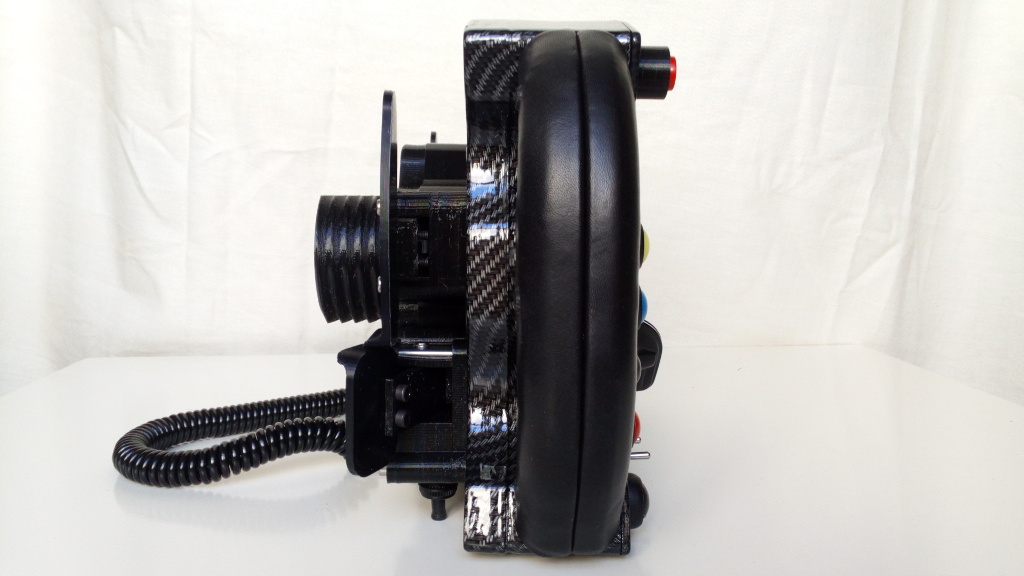

• Metal aviation connector for the connection between the USB cable and the steering wheel. USB spiral cable + 1.5 meter extension.


• It does not need drivers.


• It works with Tom Connector and Simhub softwares. Software for windows XP, 7 and 10.


• Shell and paddles in plastic made with 3D printer.


• Lined in black leather.


• Aspect of carbon fiber.


• Customizable the colors of the 10 lower buttons, the stickers of the 2 rotarys, the initial screen and the emblem.


• Measures: 260mmx 170mm x 50mm. Measures only of the ring without taking into account paddles, QR and buttons/rotarys.



• 1 steering wheel.


• 1 USB wire.


• 1 adapter for the used base.

Games supported by Tom Connector:

Assetto Corsa, Assetto Corsa Competizione, Dirt Rally, F1 2011, F1 2012, F1 2013, F1 2016, F1 2017 and probably all Codemasters games since they use the same data transmission system, iRacing, Live For Speed, Project Cars, Project Cars 2, rFactor 2.

Games supported by Simhub:

Assetto Corsa, Assetto Corsa Competizione, Dirt 2, Dirt 3, Dirt Showdown, Dirt 4, Dirt Rally, F1 2016, F1 2017, F1 2018 and probably all Codemasters games since they use the same data transmission system, iRacing, Live For Speed, Project Cars, Project Cars 2, rFactor, rFactor 2, Automobilista, Eurotruck Simulator 2, American Truck Simulator, Raceroom, Richard Burns Rally, GRally, BeamNG, Simbin Race 07, BMW M3 Challenge, Kart Racing Pro, Forza Motorsport 7, MotoGP 18, Trackmania Series, OMSI 2 Beta.

• Tom Connector

Program to send the game data to the electronic device. Developed by Tomy Racing.

DOWNLOAD

• Simhub

Simhub is a program to transfer information from games to electronic devices. You can create your own screens and have multiple tools to configure different devices. Developed by Wotever (We have not developed it ourselves and we can not make changes in the program).

DOWNLOAD

• .Hmistruct, .hmijmap and .ledsprofile files for Simhub

Files needed to operate the TOMY F1 steering wheel with the Simhub program. In the documents tab you will find information to configure Simhub with these files.

DOWNLOAD

• Steering wheel firmware. DOWNLOAD

  Version 3.00.

  - Support for Tom Connector 3.XX
  - Support for the latest versions of Simhub

  Please update the steering wheel firmware first, then update the display firmware.


• Firmware for the screen. DOWNLOAD


  The firmware for the display adds new layouts and fixes errors in the layouts.

  NOTICE: If you update to the latest version of the display firmware, you must also update to the latest version of Tom Connector if this is the program you are using to control your device.

  Version 1.30.

  - Added layouts for indycar and rally.

Games configuration for Tom Connector
Labels for buttons
TOMY F1 steering wheel user manual
Simhub manual for TOMY F1 steering wheel
